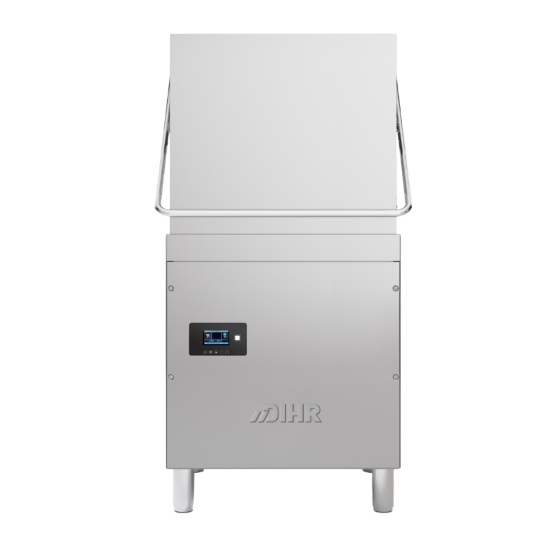

HYDROPOWER COMBI HIGH-PRESSURE WAREWASHER FOR TRAYS AND PLATES

COMBI HIGH-PRESSURE WAREWASHER FOR TRAYS AND PLATES

2 in 1: HYDROPOWER, the ultimate warewashing technology! This innovative product features unique solutions: a high pressure utensil washer and a hoodtype dishwasher.
The cleaning power of high-pressure water jets guarantees excellent results in few minutes without the need of granules and soaking. Our versatile uttensil washer goes beyond cleaning trays: it is also perfectly suited to wash dishes. Equipped with dedicated programs, it guarantees effective and hygienic cleaning, making it an ideal choice for professional kitchens that demand high efficiency and monitored operation.
In terms of sustainability, HYDROPOWER offers significant savings in detergent and time, thanks to the innovative PLUS system that minimizes water, energy, and chemical consumption. It delivers outstanding results even against the most
stubborn dirt and quick turnaround of kitchenware, maximizing productivity. By automating tasks that previously required soaking and hand washing, our HYDROPOWER allows kitchen staff to focus on other important duties. Designed to meet the demanding needs of canteens, caterers, airports, and restaurants, it provides excellent value by saving both time and money while maintaining top cleanliness standards.

STANDARD FEATURES
•Double skin
•Compact size: smaller than a warewasher, slightly wider than a
standard hood type model!
•2 FUNCTIONS:

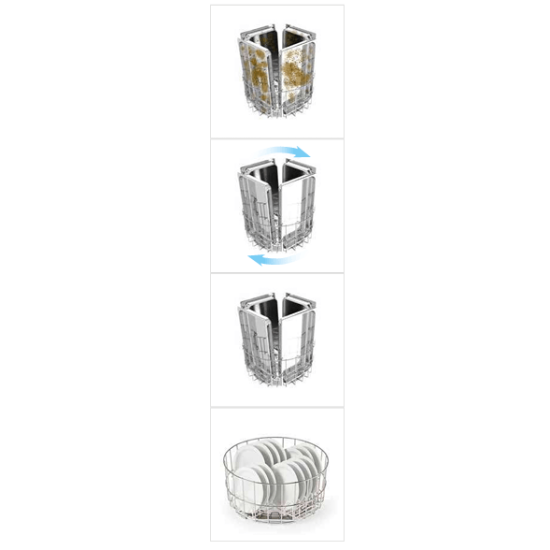

•- tray/pan washer version with high pressure jet: for burnt or furred
up GN trays or pans
•- dishwasher version: to wash dishes like a classic hood type model
•1 x high pressure wash pump for trays
•1 low pressure wash pump for dishes
•5" TFT color display
•8 wash programs:-4 cycles for trays-4 cycles for plates
•Final step after rinse: "spinning" function (fast basket’s rotation) to
help remove water from pans and trays

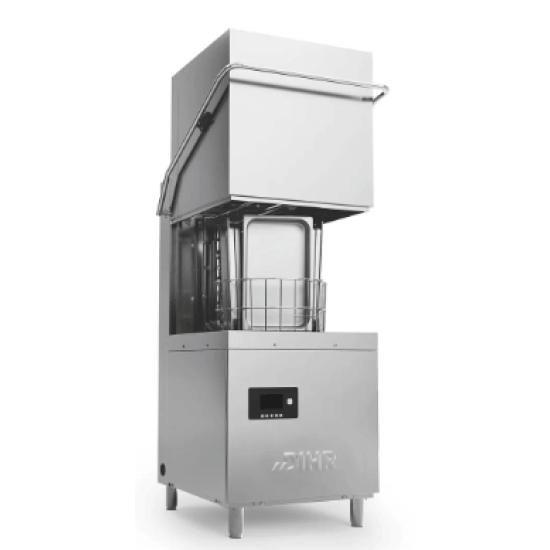

•Hood opening with useful height of 55 cm
•Tank and boiler in AISI 316
•Our PLUS system grants a constant rinse temperature and pressure
•Built-in peristaltic rinse-aid dispenser
•Self cleaning cycle
•Break Tank

OPTIONS
•Remote display (replacing the lower door one)
•HR Heat recovery steam condensing unit for cold water supply
•Exhaust fan (on the version without HR)
• LIFT: automatic hood lift at the end of the cycle
•Automatized drain
•Drain pump
•Built-in peristaltic detergent dispenser
•WRAS or DVGW

TECHNICAL DATA
Rack diameter mm 600
Maximum level of water discharge mm 170
Water inlet temperature °C 55
Maximum inlet water hardness °f 8
Inlet water pressure kPa 200 - 400
Tank capacity l 70
Tank heating element kW 9
Boiler capacity l 15
Boiler heating element kW 9
Wash pump power (alta pressione) kW 3.78
Wash pump flow rate (alta pressione) l/min 900
Wash pump power (bassa pressione) kW 1.12
Wash pump flow rate (bassa pressione) l/min 630
Rinse pump power kW 0.25
Sound pressure level dB(A) 82
LOADING CAPACITY
EURONORM loading capacity 2 x (800x600x20)
GN 1/1 loading capacity 4 x (530x325x65)
POWER SUPPLY DATA
Supply voltage 380-415 V 3N 50 Hz
Total installed power kW 12.975
EXTERNAL DIMENSIONS
Width mm 830
Depth mm 940
Height (screwed foot) mm 1720 / 2200 (open hood)
Weight (standard version) kg 245
